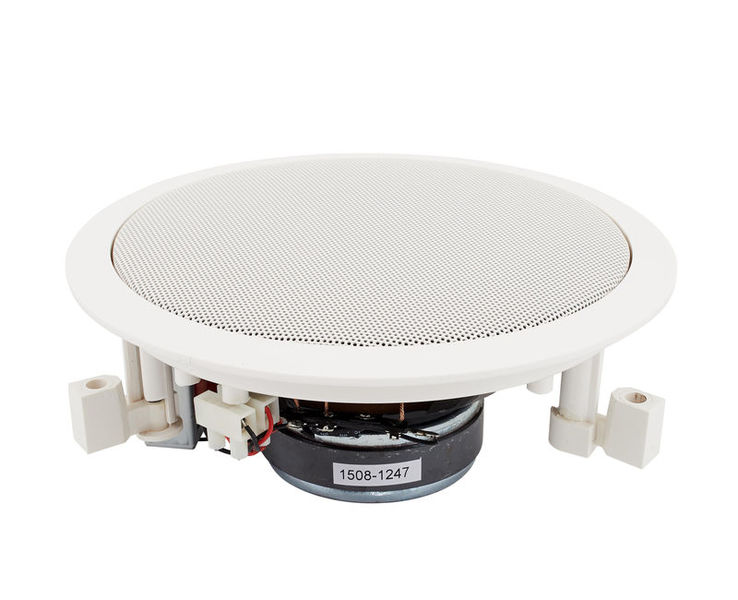

Apart CM6T WH

High-Quality 2-Way Built-In Loudspeaker

  • 40/60 Watt sine wave/music
  • 16 Ohm
  • 100 V (6W/10W)
  • 6.5"/1" Coaxial system
  • Frequency range: 60 - 20,000 Hz
  • Outer diameter: 205 mm
  • Installation depth: 80 mm
  • Ceiling cutout: 183 mm
  • Weight: 1.6 kg

Further Information

Color White
Design round
Type Fullrange
Cut-out Diameter in mm 183 mm
Mounting Depth in mm 80 mm
Woofer in inch 6,5"
IP Class No
Power (Low Impedanz) 40 W
Impedance in Ohms 16 Ohms
100V Transformer Yes
100V Taps (W) 6/3/1,5

Come up with your own creative bundle and save

If you order this product together with others as part of a bundle, you can save up to 8 % additionally!
Swissonic SA 33 + Visaton DL 18/2 T 8 Ohm 2x + Apart CM6T WH 8x +
5 more
Configure bundle now
starting from £409
6 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.2 /5
  • sound
  • quality
Text ratings for this product are available in another language only so far
de Automatically translated (Show original)
deOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
sound
quality
Guter Klang - erhöhter Montageaufwand
Matthias P., 28.06.2011
Für den Preis wird gute Qualität geboten. Klang geht auf jeden Fall OK. Natürlich ist der Übergang vom Tiefton zum Hochtöner nicht so unhörbar wie bei gut abgestimmten Lautsprecherboxen. Dennoch klingt er für einen ELA-Lautsprecher sehr rund in der Abstimmung (keine Dröhnfrequenzen, nicht dumpf, hervorragende Sprachverständlichkeit). Von der Einbautechnik gibts elegantere Lösungen (z.B. mit der Federklammer und Bajonettarretierung des Lautsprechers im Rahmen). Im Vergleich zur Federklammer bedeutet das eine erhöhte Montagezeit.

Was wirklich wünschenswert wäre sind Steckklemmen anstatt der Schraub-Lüsterklemmen.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Automatically translated (Show original)
frOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
sound
quality
Bon produit mais descriptif incorrect
Maxime9494, 08.07.2015
Il s'agit d'un bon produit mais le descriptif est incorrect car la fiche technique fournie dans le carton indique :
- 100 Volt (6W / 3W / 1,5W) et non pas 10W comme écrit sur votre site.

côté son : no problem
finition : nickel aussi
Helpful · Not helpful · Report
