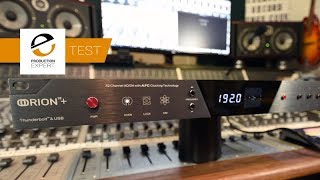

Antelope Orion 32+ | Gen 3

64-Channel Thunderbolt/USB Audio Interface with Internal Effects Processor

  • AD/DA Converter with 24-Bit/192kHz with up to 129 dB dynamic range
  • FPGA for real-time calculation of modeling effects (compressors, equalizers and more)
  • Antelope 4th generation 64-Bit Clocking technology
  • Controllable from multiple computers via Antelope Networking Control Software
  • 32 Analog line inputs (4x DB25)
  • 32 Analog line outputs (4x DB25)
  • Monitor outputs (2x 6.3 mm TRS)
  • 2x ADAT inputs/outputs
  • MADI input/output
  • S/P-Dif Input/output (RCA)
  • 1x Wordclock input (BNC, 75 Ωs)
  • 1x 10M input for Antelope Atomic Clock (BNC)
  • 2x Wordclock outputs (BNC, 75 Ωs)
  • 1x USB 2.0 Type B port
  • 1x Thunderbolt port
  • Dimensions: 483 x 44 x 220 mm
  • Mounting dimensions: 19" / 1 U
  • Weight: 3.0 kg
  • Software compatible with Windows 10 and Mac OS X 10.11

Further Information

Recording / Playback Channels 32x32
Number of Mic Inputs 0
Number of Line Inputs 32
Number of Instrument Inputs 0
Number of Line Outs 34
Headphone Outs 0
Phantom power No
Number of S/PDIF Connectors 1
Number of ADAT Connectors 2
Numer of AES/EBU Connectors 0
Number of MADI Connectors 1
Ethernet 0
Other Connectors No
MIDI interface Yes
Word Clock 2xIn, 2xOut
Max. sample rate (kHz) 192 kHz
Max. resolution in bit 24 bit
USB Bus-Powered No
Incl. power supply Yes
USB Version 2.0
Width in mm 483 mm
Depth in mm 220 mm
Height in mm 45 mm

These are other customers' choices:

Customers who looked at this item have bought these:

Antelope Orion 32+ | Gen 3
45% bought this exact product
Antelope Orion 32+ | Gen 3
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
£1,999 Add to Basket
Behringer ADA8200 Ultragain
20% bought Behringer ADA8200 Ultragain £115
Ferrofish Pulse16
6% bought Ferrofish Pulse16 £666
Ferrofish A32 AD/DA Converter
3% bought Ferrofish A32 AD/DA Converter £1,439
RME ADI-2 FS
2% bought RME ADI-2 FS £499
Our most popular Digital Converters
17 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.9 /5
  • handling
  • features
  • sound
  • quality
Total
quality
features
handling
sound
massirights, 29.11.2019
Antelope Orion 32 + Gen 3 is a multi-channel audio interface. It offers a multitude of channels both analogue and digital in various formats. That is, it covers most of the needs for both live and studio use.
I use this product mainly live, dealing with classical music recordings, which involve the simultaneous use of many microphones.
There are many pros to list, but also some flaws to be reported and improvements to suggest.
The sound is excellent, very detailed and beautifully placed spatially.
The conversion is very linear. The latency is reduced to practically zero, and delays are not appreciable.
Furthermore the interface has a really versatile control software, which allows a very diversified use.
It would be too long to explain in detail all the possibilities offered by the software, which are really many. The only drawback is the technical support for the use of the software itself. The tutorial is unclear, the manual practically non-existent, so much so that the software appears to be an inextricable tangle of little use. Instead it is really useful, well done, and effective. You can connect every point in the matrix with whatever else, send it to the DAW, and much more. It is possible to have multiple configurations, which can be recalled not only by software, but also from the physical interface panel. it can be used to connect different software together, so that the output of one of then becomes the input of another one.
It is a pity that both the inputs and outputs are not currently visible on the display, and indeed without the software the operation of switching between displaying the in and outs it is very cumbersome.
And it should be noted a very dangerous characteristic of the machine: the power button, only if touched for a very short time, turns the unit off. For live uses I recommend making a cover with a plastic bottle cap to avoid accidental bumping it. Too bad, however, that the same key gives access to an important menu if pressed for a long time. Frankly I would have preferred the operation to be opposite, that is, that the menu appeared with a simple pressure, and the switching off with a prolonged pressure; and I gave this suggestion to Antelope. We'll see if they know how to welcome him. To conclude: despite the indications of the House that require a Mac at least born in 2012 and with the Sierra system, it works very well also with the Mac of 2010 and OS El Capitain.
In short: it's really a very good investment.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
features
handling
sound
Great converters
Fab73, 01.03.2021
I am really happy with this interface. Extensive connectivity, great sound and (once learned) great matrix which makes this hardware almost as flexible as a digital patchbay.

I use it with Mac OS (Catalina) and from time to time when I turn the computer on, I need to re-start it since the audio interface is not recognized by the system.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
features
handling
sound
perfect card
Clawz SG, 17.08.2020
really excellent sound, but be aware that the card is not supporting windows sound systems by default but only asio
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
features
handling
sound
Crystal Conversion
Blueleaf Studio, 30.04.2019
I bought the Orion32 to improve my AD/DA conversion and it's done just that and some more. I'm really impressed with the conversion quality. The control panel software takes some fiddling with and I had problems getting a signal into the unit at first but Antelope support were absolutely fantastic and one factory reset later the problem was solved. The only thing that is a little disappointing is the price of the FPGA Fx. You get them free with the Orion Studio but not with the 32+ and boy do they cost to buy separately. That's not so bad though as I didn't buy it as an effects box and really that's just an added bonus.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
