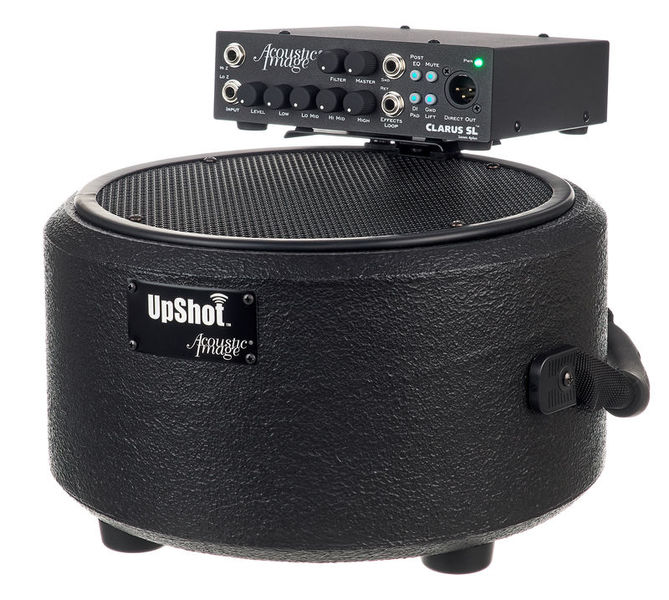

Acoustic Image UpShot 1 Combo 680 U1
Combo for Double Bass
- Consists of Upshot Speaker Cabinet with Clarus SL606 IA amplifier
- Includes mounting bracket and speaker cable
Cabinet 680 EX
- One 10" woofer radiating upwards
- Well suited for acoustic and electric instruments like guitar, double bass, keyboard etc.
- Rated power: 300W
- Impedance: 8 Ohm
- Frequency range: 40 - 4.000 Hz
- Max SPL: 113 dB/m
- Input: Neutrik Speakon with pole 1 assignment
- Diameter: approx. 30.5 cm
- Height: approx. 15.3 cm
Clarus SL S4plus 606IA
- 1 Channel
- 600 Watts
- 650 Watt music power into 4 Ohm
- Without effects
- 4-Band EQ
- Adjustable low cut filter
- Effects loop
- Direct-Out with switchable 10 dB boost/cut
- Pre/Post and Ground Lift switch
- Mute switch
- 6.3 mm LoZ and HiZ jack inputs for optimum matching to piezo pickups
- Speaker outputs with Speakon connectors
- Weight: approx. 1.2 kg
- Dimensions: approx. 5.3 x 18.3 x 18.8 cm
