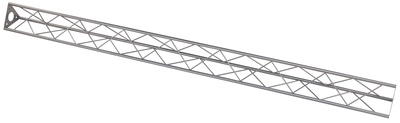

Decotruss 3 Point Truss Silver 2m

Truss

The Decotruss elements can be screwed together with the connecting plates with three M8 screws. Through a variety of cross beams and corners you can create fantastic structures. Decotruss is suitable to create individual design-elements, such as shopfitting and trade show booths. Decotruss constructions can be used as design elements or for low weight installations.

  • Decorative truss
  • Easy installation
  • Max. distributed section load: 35 kg
  • Longitudinal tubes: 15 x 1 mm
  • Crossbars: 5 mm
  • Dimensions: 2000 x 150 x 130 mm
  • Please respect the regulations in respect to trussing constructions

Lisätietoa

Feature Straight
Lenght or diameter 200 cm
Tailings 2
Colour Silver
System Decotruss

Nämä ovat muiden asiakkaiden valintoja:

Tätä tuotetta katsoneet asiakkaat ovat ostaneet nämä:

Decotruss 3 Point Truss Silver 2m
40% on ostanut tämän tuotteen
Decotruss 3 Point Truss Silver 2m
Samantien saatavilla
Samantien saatavilla

Tämä tuote on varastossa ja voidaan lähettää heti.

Tietoa lähetyksestä
53 € Lisää ostoskoriin
Decotruss 3 Point Truss 1,5m
11% on ostanut Decotruss 3 Point Truss 1,5m 44 €
Stairville Deco Truss 150 cm black
9% on ostanut Stairville Deco Truss 150 cm black 33 €
Decotruss 3 Point Truss Silver 1m
6% on ostanut Decotruss 3 Point Truss Silver 1m 29 €
Stairville Deco Truss 100 cm black
5% on ostanut Stairville Deco Truss 100 cm black 28 €
Suosituin tuotteemme Koristetrussit
78 arviota:
  • 5
  • 4
  • 3
  • 2
  • 1
4.4 / 5.0
  • Työnjälki
Kirjoitetut arviot muilla kielillä tästä tuotteesta ovat voimassa
24 kirjoitettua arviota Lue kaikki arvostelut
gb Käännetty automaattisesti (Näytä alkuperäinen)
gbAlkuperäinen arvostelu (Näytä käännös)
Valitettavasti tapahtui virhe. Ole hyvä ja yritä uudelleen.
Yhteensä
Työnjälki

Decotruss - detailed description and usefullness

UK Beachboys, 12.05.2015
When I ordered the truss sections, I wanted something to support a fairly light moving head vertically. Thomann and Decotruss make it quite plain that this is not structural truss - it's primarily for things like exhibition booths, with perhaps a few lightweight lights hanging from it - looking good and modern, but being useful.

My requirement was for vertical loading on a single section, and I wasn't sure exactly how strong this design was - so I ordered it.

In terms of construction, the truss is made from 15mm aluminium, about 2mm wall thickness. The chord to chord bracing is 5mm solid section. The 2m length, supported at it's ends horizontally easily supported my 15 stone weight in the middle with no flexing or deformation. This proved my vertical loading was not going to be an issue.

The weak link in the design is that sections are joined together with 3 10mm nuts and bolts that secure the welded in end plates face to face. The end plates are welded to the chord tubes and the thickness is not thick enough to be rigid and not bend. If you joined two 2m lengths horizontally, the strength at the centre is just the three welds and the two plates. They WILL bend with anything other than a light top load. This backs up the warnings in the documentation.

I would happily use it to make up a lightweight and good looking projection screen surround, or hang some lightweight LED fixtures from it - but not a heavier fixture in any situation when two pieces have been joined horizontally.

In terms of construction, the welding is pretty good, but some of the cross bracing is cut a little short, or at the wrong angle, so the bracing doesn't actually touch the chord tube, and the weld has to fill the gap. The paint finish is good, but will chip if you catch the tube on a sharp edge. It does exactly what I wanted, so for my use, it's amazingly cheap and useful.

The silver finish is really grey by the way, not very silvery in the light.

I will certainly buy more of this - it's much more cost effective than structural trussing, and much cheaper - but just remember the warnings - it is NOT structural and joining pieces together robs much of the strength the tube itself has.
