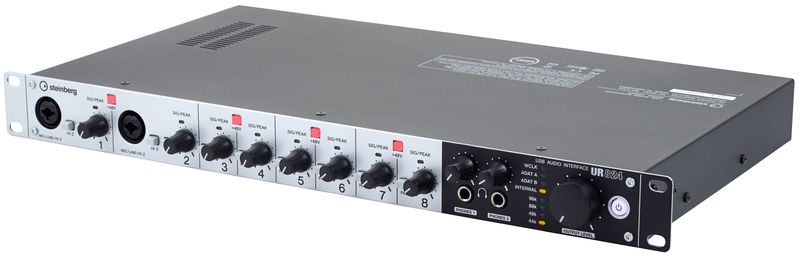

Steinberg UR824

USB 2.0 audio interface

  • 24-Bit / 192 khz
  • 8 Analog inputs and outputs
  • 8 Class-A mic preamps with 48V phantom power
  • Latency-free DSP-powered monitoring with a REV-X reverb and 8 Channel Strips
  • 8x XLR/jack combined inputs mic/line
  • 2x Hi-Z input
  • 8x Line out 6.3 mm jack
  • 2x ADAT I/O
  • 2x headphone outputs
  • Word Clock I/O with 2 BNC connectors and JetPLL support
  • USB 2.0 connection
  • Incl. Cubase AI6 software

Yderligere info

Recording / Playback Channels 24X24
Number of Mic Inputs 8
Number of Line Inputs 8
Number of Instrument Inputs 2
Number of Line Outs 8
Headphone Outs 2
Phantom power Yes
Number of S/PDIF Connectors 0
Number of ADAT Connectors 2
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI interface No
Word Clock 1xIn, 1xOut
Max. sample rate (kHz) 192 kHz
Max. resolution in bit 24 bit
USB Bus-Powered No
Incl. power supply Yes
USB Version 2.0
Width in mm 480 mm
Depth in mm 275 mm
Height in mm 44 mm
48 Kundens vurdering:
  • 5
  • 4
  • 3
  • 2
  • 1
4.7 / 5.0
  • betjening
  • features
  • lyd
  • forarbejdning
Dette produkt har endnu kun tekstanmeldelser på et andet sprog.
30 tekstanmeldelser Læs alle anmeldelser
gb Automatisk oversat (Vis original)
gbOriginal anmeldelse (Vis oversættelse)
Der opstod en fejl. Prøv igen senere.
I alt
forarbejdning
features
betjening
lyd
Interface with soul
Maximoff, 14.06.2018
I had an experience with lots of interfaces. From cheap to prof.
Used Focusrite's scarletts and saffires, M-Audio, Avid.
Also tried pro systems from Avid, Apogee and Burl.

For now can say, that UR is the best interface that I had, according to that class. I recorded the same mics in scarlett preamps and UR's D-PRE.
And can say, that UR sounds like, more musical. Preamps are very "Hi-Gained". Really very low noise. Especialy in comparing to its direct very popular opponent Focusrite Scarlett. Very hi quality Hi-Z inputs. Guitars sounds marvelous and needs very little gain, almost zero.

Interface sounds very expensive. Similar to top systems.

Pros:
Very low noise, delicate, musical D-PRE preamps. 10/10.
DSP low latency monitoring. With very customizable parametres.
Splited ability to adjust level for each Line OUT.

Cons:
No MIDI in/out.
Cannot use DSP for post processing in other DAWs, except Cubase. Maybe someday drivers would be updated for that.

Need an expensive HiQ sound in your studio, but don't have a planty of money?
Buy one, and it won't be a mistake!
Nyttig · Ikke nyttigt · Anmeld bedømmelse
En "forkert" vurdering.

Synes du at denne vurdering er forkert eller af en anden grund ikke læselig?

send melding
gb Automatisk oversat (Vis original)
gbOriginal anmeldelse (Vis oversættelse)
Der opstod en fejl. Prøv igen senere.
I alt
forarbejdning
features
betjening
lyd
Perfect with Cubase
Magnus F., 11.07.2019
Well, I went from an RME UCX to this because I needed more channels, and with two ADAT 8 channel preamps I get 24 in (I mostly recording rock bands playing "live"), and I was expecting some drawbacks. There are only good news though, as the drawbacks are, to me, mostly negectable. If you want to run this without Cubase you need DSP MixFx which is a bit lacking compared to the RME offering (although easy to use), but apart from that I am very happy this isn't more expensive. Looking to get another one to expand the output possibilities.
The things I like the most are the integration with cubase, it's very simple to get a useable guitar sound for tracking (or to print, but I don't think the Yamaha amps are THAT good) and the channel morphing strip gives singers confidence, very nice. Also the preamps sound really good!
One thing I don't like is that the behaviour of the soundcard isn't predictable without a computer (not the way RME is at least) so there is no use for this without a computer, not even for giving our drummer some kick in his cans.
I rate this with all 5 stars, but that is weighing in the price.
Things I'd bitch about if it cost double the money are that +48V are switchable on two channels at a time, and that there are no meters to speak of, so you need your DAW or DSPMixFX to set gains. Oh and I would really love if inputs 1 and 2 were doubled on the back.
Also, speaking of the DSP, you can only use ONE instant of the amp classics, and a total of 8 instances of the channel strip. I would have liked at least three amp instances and chanel strip for all channels.
But all in all, this is a really nice offering considering the price, and the build quality is sturdy too.
Nyttig · Ikke nyttigt · Anmeld bedømmelse
En "forkert" vurdering.

Synes du at denne vurdering er forkert eller af en anden grund ikke læselig?

send melding
