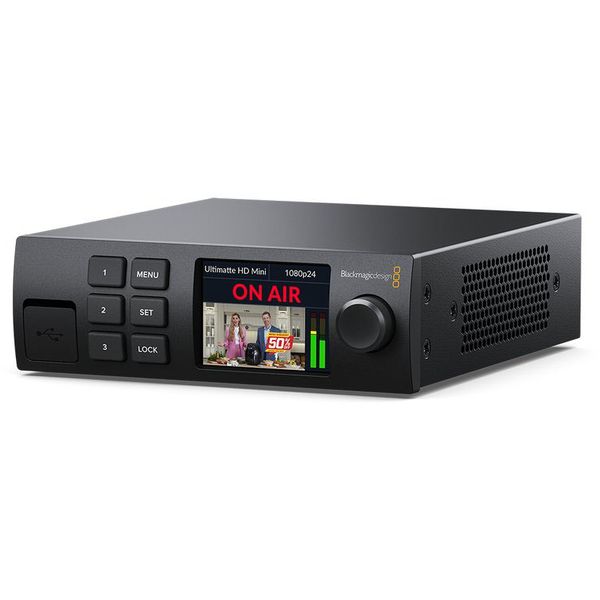

Blackmagic Design Ultimatte 12 HD Mini

Real-Time Keyer

• Designed for creating next-generation virtual sets with consumer cameras
• HDMI connections make it perfect for use with Blackmagic Studio Cameras, Pocket Cinema Cameras and ATEM Mini live production mixers
• 6GB of image memory for creating virtual sets with fixed cameras and pre-rendered stills
• Offers broadcast-quality algorithms and colour science for photo-realistic compositing
• Power requirements: 1 integrated AC power supply for 100- 240 V
• 50/60 Hz (IEC mains cable not included)
• Power consumption: 12 W
• Dimensions: 140 x 44.2 (1U) x 177 mm
• Weight: 760 g

Connections:

• 2 SDI video inputs (monitor in for monitor cascade function and return in for camera control)
• 2 SDI video outputs
• 2 HDMI video inputs
• 1 HDMI video output
• Video inputs with resync: On all inputs
• SDI rates: 270 Mbit, 1.5 G, 3 G
• Ethernet: Up to 1 Gbps for device control and loading still images into the media pool
• Computer interface: 1 USB-C 3.0 for device configuration and software updates

Standards:

• SD video standards: 525i/59.94 NTSC, 625i/50 PAL
• HD video standards: 720p/50, 720p/59.94, 720p/60, 1080i/50, 1080i/59.94, 1080i/60, 1080p/23.98, 1080p/24, 1080p/25, 1080p/29.97, 1080p/30, 1080p/50, 1080p/59.94, 1080p/60
• SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B
• Video sampling frequency: 4:2:2
• Colour accuracy: 10 bit
• Colour spaces: Rec 601, Rec 709
• Multirate support: automatic detection of SD and HD

Compositing sources:

• Foreground: 1 HDMI input
• Background: 1 HDMI input, still image from Media Pool
• Background matte: internal window, still image from Media Pool
• Garbage matte: internal window, still image from Media Pool
• Holdout matte: internal window, still image from the Media Pool
• Level: still image from the Media Pool
• Layer matte: internal window, still image from the Media Pool

Compositing outputs:

• Programme: 1x HDMI, 1x 3G-SDI
