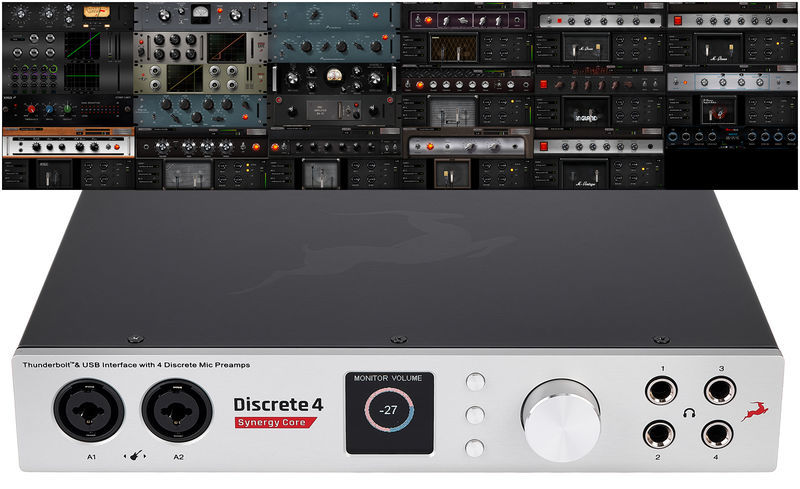

Antelope Discrete 4 Synergy Core

Vis oversættelse

Thunderbolt / USB Audio Interface with 36 DSP and FPGA real-time effects

  • 2 DSP and 1 FPGA to process Antelope FX
  • 24 Bits / 192 kHz
  • Up to 121dB dynamic range
  • <1ms latency for monitoring, effects and microphone simulations
  • Antelope 64 bit acoustically focused clocking
  • Dimensions (W x D x H): 261 x 208 x 44 mm
  • Weight: 1.7 kg
  • System requirements: Windows 10, OS X: 10.11 / 10.12 / 10.13
  • Incl. power supply and USB cable

Connections:

  • 2 Microphone / line / instrument inputs (XLR / TRS combo socket)
  • 2 Microphone / line inputs (XLR / TRS combo socket)
  • 4 Line outputs (6.3mm TRS jack)
  • 2 Monitor outputs (6.3mm TRS jack)
  • 4 Stereo headphone outputs (6.3mm TRS jack), each with its own volume control
  • ADAT input / output
  • S / P-Dif input / output (RCA)
  • 2 Wordclock outputs (BNC)
  • Thunderbolt and USB 2.0 port

Includes 36 real-time synergy core effects, modelled preamps, dynamics and equaliser:

  • Gyraf Gyratec IX (Tube Mic Preamp)
  • BA-31 (Mic Preamp)
  • VCA160 (Compressor)
  • Stay-Levin (Compressor)
  • FET-A76 (FET Compressor)
  • FeedForward Antelope Compressor (Compressor)
  • X903 (Compressor/Limiter)
  • Power EX (Expander)
  • VEQ-1A (Tube EQ)
  • VEQ-HLF (Passive High/Low Filter)
  • VMEQ (Tube EQ)
  • Clear Q (Parametric EQ)

Modelled guitar amplifiers and speakers:

  • Plexi 59 (Tube Guitar Amp)
  • Bass SuperTube VR (Tube Guitar Amp)
  • Darkface 65 (Tube Guitar Amp)
  • Top30 Bright (Tube Guitar Amp)
  • Tweed Deluxe (Tube Guitar Amp)
  • Overange 120 (Tube Guitar Amp)
  • BurnSphere Lead (Tube Guitar Amp)
  • Marcus II Lead (Tube Guitar Amp)
  • Modern CH3 (Tube Guitar Amp)
  • Rock 75 (Tube Guitar Amp)
  • Rock 22.10 (Tube Guitar Amp)
  • Darkface 65 2x12 (Guitar Cabinet)
  • Bass SuperTube VR (Guitar Cabinet)
  • Darkface 65 (Guitar Cabinet)
  • Top30 Bright (Guitar Cabinet)
  • Tweed Deluxe (Guitar Cabinet)
  • Overange 120 (Guitar Cabinet)
  • BurnSphere Lead (Guitar Cabinet)
  • Marcus II Lead (Guitar Cabinet)
  • Modern CH3 (Guitar Cabinet)
  • Rock 75 (Guitar Cabinet)
  • Rock 22.10 (Guitar Cabinet)

Additional effects:

  • Aura verb (reverb)
  • Power Gate

Yderligere info

Recording / Playback Channels 14x16
Number of Mic Inputs 4
Number of Line Inputs 4
Number of Instrument Inputs 2
Number of Line Outputs 6
Headphone Outs 4
Phantom Power Yes
Number of S/PDIF Connectors 1
Number of ADAT Connectors 1
AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI Connectors No
Word Clock 2xOut
Max. Samplerate 192 kHz
Max. Resolution in Bit 24 bit
Bus-Powered No
Incl. Power Supply Yes
Windows Thunderbolt driver Yes
Thunderbolt Version 2
Width in mm 261 mm
Depth in mm 208 mm
Height in mm 44 mm

Sammensæt selv Creative Bundle og spar

Hvis du bestiller denne vare sammen med andre varer i bundlet, kan du spare yderligere op til 5 %!
Antelope Discrete 4 Synergy Core + Image-Line FL Studio Producer Edition +
7 flere
Konfigurer bundle nu
Fra 9.099 kr

Det har andre kunder besluttet sig for

Det køber andre, som har set på dette produkt:

Antelope Discrete 4 Synergy Core
27% købte nøjagtig dette produkt
Antelope Discrete 4 Synergy Core
Tilgængelig
Tilgængelig

Varen er på lager og kan afsendes med det samme.

Information om forsendelse
8.199 kr Put i indkøbskurven
SSL 2+
7% købte SSL 2+ 1.890 kr
Antelope Discrete 8 Synergy Core
7% købte Antelope Discrete 8 Synergy Core 11.333 kr
Antelope Zen Go Synergy Core
6% købte Antelope Zen Go Synergy Core 3.777 kr
RME Babyface Pro FS
5% købte RME Babyface Pro FS 5.222 kr
Vores mest populære USB audio interfaces
57 Kundens vurdering
  • 5
  • 4
  • 3
  • 2
  • 1
4.9 /5
  • betjening
  • features
  • lyd
  • forarbejdning
I alt
betjening
features
lyd
forarbejdning
Coolest interface
Muzaka, 07.12.2020
Best audiointerface I have heard to date.
I came from TC Electronic Konnekt 24D, which I have used in nearly 10 years, and was very happy to use. But unfortunately FireWire was left behind (No driverupdates for Windows 10. :-(
so I had to upgrade to a new interface wich, after severel hours of search all over the net, I ended up with this cool little Interface.
Little is a misleading word in this context. Okay the interface is slim, smart and modern to look at. But the soundcart as a tool to make and enjoy music, is outstanding.
When You for the first time connect this cute little thing, you are beeing rewarded with "new speakers" to. At least you think so :-)
My old Behringer Truth, which is 10+ yeas, realy came to a new life, and I think I will stick to them until they die.
So all in all: Antelope Discrete 4 synergy Core has been a serious investment , and I've not regret it for a minute.
Thank You Antelope for this super product, and thank You Thoman for your fine service.
Nyttig · Ikke nyttigt · Anmeld bedømmelse
En "forkert" vurdering.

Synes du at denne vurdering er forkert eller af en anden grund ikke læselig?

send melding
gb Original anmeldelse (Vis oversættelse)
Der opstod en fejl. Prøv igen senere.
I alt
betjening
features
lyd
forarbejdning
very versatile and high quality machine
SanPeric, 16.02.2020
I've been using synergy core for little more than a month and so far everything worked flawlessly including their customer service too ...

After quite a lot of exploring and researching I was between UAD's apollo and this little beast , I honestly think that antelope is one the biggest real competitors to uad when it comes to quality/value/price offer , the thing is that uad has been much longer in the game , trusted by thousands (for a reason) , so probably that's why they still on the top of the game and will be for a while, but antelope is right behind ...

I had a chance to work and record with both , apollo and synergy core , didn't get a chance to compare them back to back yet but i can def say that the plug ins , conversion , and general workflow are equally good and easy from what i can feel and remember , so i will write this review in that light ....

sound/conversion quality : I just love how open and pristine they sound, it feels like the details come out more , like that 3D picture and depth engineers work hard for actually comes through , I had the same feeling with apollo.. the only little difference is that apollo converters sound tad bit warmer , or in other words synergy sounds a little more clear... now , that might and might not be a good thing , in some situations you actually want that pristine clarity synergy core offers , in some other you might want little more of that warmth uad is known for .... however , given the price difference , i gotta say , I dont regret a single penny when it comes to sound quality of synergy core ...

plug ins and DSP : ok , so I mean , there are tons of plug ins antelope offers , some of them are included some of them you can buy later some of them you get to choose as a gift ... from what I tried , they all sounded great, clear and they do what it says they should ... i am not gonna go into compering them to any other plugin manufacture company as that's pointless , it's all about ears and the track...let's just say that 2 fairchilds or 2 neves or any 2 of vintage equipment outboards dont sound exactly the same so why would 2 plug ins ... all I can say is that they sound great and I would use them as well as i would any other plug in I like and know well and that includes waves , fabfilter, softube,soundtoys and so on .. One I'm really impressed by is Impresser (distressor) ... kicking ass plug in ... it is a shame you can not use them inside your DAW without their bridge plugin that you have to pay for, but again , you can't have it all ,right ? .. they already giving you pretty good deal for the price ...

I/O : i personally find all i need for what i use synergy core with 4 inputs and 6 outputs plus ability to expand whenever you need ... and honestly that was the biggest selling point for me .. i mix hybrid and i record hybrid and i personally believe that's the present and future of audio recording and mixing so I def think antelope is heading towards the top of the game with their products ...

for the end , gotta say that after working with interfaces like focusrite , presonus , motu , apogee ... i def consider this an upgrade in quality and versatility ...
Nyttig · Ikke nyttigt · Anmeld bedømmelse
En "forkert" vurdering.

Synes du at denne vurdering er forkert eller af en anden grund ikke læselig?

send melding
gb Original anmeldelse (Vis oversættelse)
Der opstod en fejl. Prøv igen senere.
I alt
betjening
features
lyd
forarbejdning
Unique interface
Pofa, 21.08.2019
I have chosen this interface overall for three features that I have not found all together in the same price range:
1- the 4 headphone out with 4 different mixes (very easy to do),
2- the DSP+FPGA models,
3- the Thunderbolt and USB connection.

At the moment I cannot make A/B tests with my other interfaces (an old but still good RME400 and a Focusrite Clarett Thunderbolt, both great for different reasons) but I read some serious reviews with scientific measurement that put the interface between the best products (in its price range of course).
With the DSP+FPGA models I can prepare, save and recall 4 channel strips for the headphones without latency and without bothering the CPU of the Mac.
I use it just for monitoring while at mix I can use all my plugins, but also the DSP+FPGA of the Antelope, thanks to the AFX2DAW plugin that in Pro Tools allows to use and see the Discrete4 as an external hardware, seeing all plugins in the insert list.
Few days after my business the price of the Discrete4 has dropped down and with more plugins. Antelope contacted me in order to give me for free the plugins of the new offer. This was nice and appreciated.
The performance of the interface is good. The drivers and control panel are good too, while sometimes a little bit complicated but probably is the “learning curve”.
The output power of both headphones and monitor out is good but not so abundant compared to the “High Level” of the RME. Also the way the loudness increase could be better, on the Focusrite is perfect having at 12H always the perfect loudness limit for the normal use, while on the Antelope there is a big increase on the last quarter form 3 to max.
I don't know if it's possible via driver/firmare update to implement more output levels and to change the way the volume control reacts.

Said that the Discrete4 with his actual offer, price and unique features is, in my opinion, hard to beat at the moment.
Nyttig · Ikke nyttigt · Anmeld bedømmelse
En "forkert" vurdering.

Synes du at denne vurdering er forkert eller af en anden grund ikke læselig?

send melding
gb Original anmeldelse (Vis oversættelse)
Der opstod en fejl. Prøv igen senere.
I alt
betjening
features
lyd
forarbejdning
MASSIVE IMPROVEMENT!!!
madmofo, 12.01.2021
After tying out a number of audio interfaces from various manufacturers, including UAD, RME, MOTU, and Focusrite, I was blown away by the crisp sound quality of this Antelope Discrete 4 SC.

After long years of using Native Instruments' Komplete Audio 6, I finally decided to upgrade and came across this audio interface. At first, I was skeptical about this whole "premium audio interface" thing, but I saw Antelope was doing a special promotion (Free Edge Solo mic, BitWig, and some great effects!) and decided to pull the trigger.

Since I received it, I've been recording vocals, guitars, bass, synth and various other things with it, and the results have been amazing! Komplete Audio is by no means a poor audio interface, but this thing is at a whole another level in terms of sound quality and accuracy. Being able to apply various effects, preamps and EQs to your input source without consuming the CPU of your computer is a HUGE plus. On top of all that, this thing made not only the input signal but the output signal incomparably beautiful.

Definitely recommend this. Oh, you should get the 8 version if you record drums, etc. I don't, so 4 inputs are more than enough!
Nyttig · Ikke nyttigt · Anmeld bedømmelse
En "forkert" vurdering.

Synes du at denne vurdering er forkert eller af en anden grund ikke læselig?

send melding
