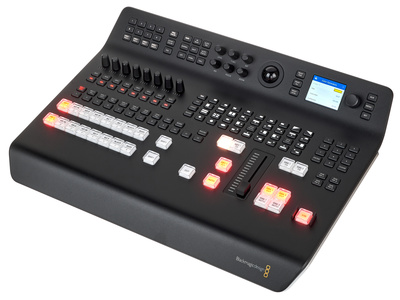

Blackmagic Design ATEM Television Studio Pro HD

Production Mixer

  • With integrated control panel
  • Four SDI and four HDMI inputs
  • LCD colour display for video, audio and timecode monitoring
  • Extensive controls for live video and sound editing as well as colour corrections
  • Professional picture-in-picture effects with customisable frames, shadows and lighting
  • 17 DVE transitions selectable when switching sources
  • Four SDI and four HDMI inputs with resynchronisation
  • One upstream keyer and two downstream keyers
  • One chroma keyer and one transfer keyer
  • Six levels
  • Two pattern generators and two colour generators
  • DVE with 3D borders and shadows
  • Storage for up to 20 of your own graphics and logos in the media pool for access via the media player
  • Compatible with all HD formats up to 1080p/60
  • Storable macros
  • SDI talkback outputs support n-1
  • Powerful integrated audio mixer
  • SDI rates: 270 MBit, 1.5 G, 3G
  • Power supply: Internal connection for 100-240 V AC, 4-pin 12 V DC
  • Power consumption: 40 W
  • Dimensions: 423 x 302 mm
  • Weight: 4.2 kg
  • Includes SD card with software and operating instructions

Inputs:

  • 4x SDI (10 bit SD/HD switchable, 2 embedded audio channels)
  • 4x HDMI Type A (10 bit SD/HD switchable, 2 embedded audio channels)
  • Reference input (Tri-Sync or black burst)
  • 2x XLR audio input

Outputs:

  • 5x SDI program outputs (10 bit SD/HD switchable)
  • 1x SDI and 1x HDMI multiview output
  • RS-422 connection and network port for remote control

Další informace

Streaming via USB No
2 444 € 64 358,59 Kč
Cena vč. DPH, doprava zdarma

Cena v CZK je pouze orientační

Neznámý termín dodání
Neznámý termín dodání

Tento produkt je momentálně vyprodaný a máme ho objednaný. Dodavatel nám bohužel aktuálně nemůže přislíbit dodání během příštích třech měsíců. Doporučujeme tedy rozhlédnout se v našem sortimentu po možných alternativách.
