Waldorf KB37 Keyboard

Keyboard for Eurorack modules

  • Fatar TP9 keyboard with 37 keys and aftertouch
  • Pitchbend- and modulation wheel, glide, octave up/down switch
  • Gate retrigger
  • CV interface: 8 CV outputs, pitch, velocity, aftertouch, pitchbend, mod wheel
  • 3 freely definable MIDI controllers
  • 3 trigger outputs
  • Gate
  • Clock & Reset outputs for MIDI synchronisation
  • Module section: Eurorack compatible bus
  • Integrated power supply: +12 V / -12 V / 1.5 A
  • Width: 545 mm / 107 HP
  • USB
  • MIDI In / Out / Thru
  • Sustain pedal input
  • Sensor input and output
  • 2 line outputs: L/R stereo
  • 6.3 mm jack stereo headphone output

Note: Eurorack modules are not included.

These are other customers' choices:

Customers who looked at this item have bought these:

Waldorf KB37 Keyboard
39% bought this exact product
Waldorf KB37 Keyboard
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
699 € Add to Basket
Tiptop Audio Mantis Blue
15% bought Tiptop Audio Mantis Blue 309 €
Arturia RackBrute 6U
8% bought Arturia RackBrute 6U 318 €
Doepfer A-100 G6 PSU3
7% bought Doepfer A-100 G6 PSU3 455 €
Doepfer A-100LC3 Low Cost Case
7% bought Doepfer A-100LC3 Low Cost Case 185 €
Our most popular Eurorack housings
4 customer ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.8 / 5.0
  • handling
  • features
  • quality
4 written ratings Read all reviews
Total

Almost the ideal Euro case

Giles J., 18.02.2017
I wanted a Euro case with a keyboard since having modules in a case and then needing an external keyboard is a lot of faff.

The kb37 is pretty much the only big name option at the time of reviewing and is a great option. The keybed is a Fatar, it's not weighted but it at least has aftertouch.

Having all the modulation options as CV outs is very useful, as is having full 1/4 inch jacks for sound output.

The only negatives for me are that the power outputs are unshrouded and bunched up to the left of the case. Also the power supply reduces the available space for the rightmost module.

I like this enough to have two of them and would consider buying more. I like to group my modules into a full synth rather than have a huge rack of modules.
Helpful · Not helpful · Report review
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Automatically translated (Show original)
deOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total

Class Modular

Stratoblaster4711, 22.11.2016
I bought this system only because I found it very handy for the development of my own modules. Over time, however, it has also turned out to be more than ideal, above all, I spare myself the extra rack, and have everything in one operating level at hand. To the patch cables is to say, if you spend a little longer, you can leave them very well backwards, so do not disturb the game on the keyboard. For this purpose, the horizontal design of the modules is already a pleasure against a vertical system. The keyboard plays very pleasantly, the only bit heavy is the mechanical movement of the keyboard to respond to the aftertouch. There must be quite a lot of power, because there are more comfortable keyboards which are easier to play. The keyboard is absolutely appropriate for the module range, but sometimes you want an octave more in the keyboard on a 49 keyboard. In the firmware, a bug still existed in the delivery state, which was noticeable at the pitch bend just above the zero position. There, the voltage slid briefly downwards with a positive movement. After a firmware update, however, this problem has been fixed. The case is solid metal, which I personally like very much. This, however, is also due to the weight of the instrument, but this does not bother us in the studio, is rather better because it rests securely on the stand. The internal clock is absolutely awesome, saves me in this way a cumbersome external clocking. Also it can be adjusted directly by potentiometer. On the backboard bus, I noticed later, that he does not provide + 5V, although it is imprinted. This problem can be solved with a + 5V plug-in module. All in all, this instrument is absolutely worth its money, and will probably never want to sell it any more.
Helpful · Not helpful · Report review
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Show variations of this product
Waldorf KB37 Keyboard
(4)
Waldorf KB37 Keyboard
to the product
699 €

Keyboard for Eurorack modules Fatar TP9 keyboard with 37 keys and aftertouch, Pitchbend- and modulation wheel, glide, octave up/down switch, Gate retrigger, CV interface: 8 CV outputs, pitch,...

  • System: Eurorack
  • Width: 107 TE / HP
  • Module: No
  • Hight: 3 U
  • Empty Rack, Or Housing: Yes
  • Basic System: No
  • Power Supply: Yes
  • Accessories: Yes
  • Power Supply Specifications: +12V/1500 mA, -12V/1500mA
  • Formfactor: Keyboard
Waldorf vcf1
Waldorf vcf1
to the product
199 €

Eurorack Module Waldorf filter, Analogue 12db/octave multimode filter with distortion, Signal path: Distortion -> Filter -> Overdrive, 2 Audio inputs with gain, Resonance up to self-oscillation, 2...

  • Width: 18 TE / HP
  • Module: Yes
  • Empty Rack, Or Housing: No
  • Basic System: No
  • Accessories: No
Waldorf nw1
(4)
Waldorf nw1
to the product
199 €

Eurorack module Novel wavetable engine, Cyclic wavetable scanning with modular position and speed, Control of the spectral envelope without affecting pitch, Adjustable periodicity up to noise...

  • Analog: No
  • Digital: Yes
  • Module: Yes
  • Width: 32 TE / HP
  • Empty Rack, Or Housing: No
  • variants: Waldorf
  • Basic System: No
  • Accessories: No
Waldorf cmp1
(1)
Waldorf cmp1
to the product
199 €

Eurorack Module High-end analogue compressor, Attack and release control, Automatic and manual modes of operation, Hard and soft knee, Adjustment of the output level, Mixing the original signal,...

  • Reverb: Ne
  • Module: Yes
  • Delay: No
  • Multieffect: No
  • Empty Rack, Or Housing: No
  • Misc. Effects: Yes
  • Basic System: No
  • Accessories: No
  • Width: 20 TE / HP
Waldorf dvca1
Waldorf dvca1
to the product
199 €

Eurorack Module 2 VCAs with many options, Musical colouring of the signal, Dry mode, Colour control to give the signal a warm and expressive timbre, Positive gain control, Flexible link modes,...

  • Width: 20 TE / HP
  • Module: Yes
  • exponential: Yes
  • linear: Yes
  • Empty Rack, Or Housing: No
  • Basic System: No
  • Accessories: No
Waldorf mod1
Waldorf mod1
to the product
199 €

Eurorack module 3 Different modulation sources in one module, From simple envelopes and LFOs to complex looped multi-stage curves, Gate and trigger inputs, 10 Rotary knobs, Powder-coated metal...

  • Width: 32 TE / HP
  • Module: Yes
  • Empty Rack, Or Housing: No
  • Basic System: No
  • Accessories: No
Free shipping incl. VAT
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
Live Broadcast from our Departments
Our sales team will be happy to demonstrate any piece of equipment you want to see live from our store.
Visit department
Live Broadcast from our Departments
You have almost reached our store!
1. Browser
is compatible

This service is compatible with most web browsers. Should you encounter difficulties, you might try changing to Firefox or Chrome.

2. Mikrophone
no connection

In order for our representative to be able to hear you, you must have a microphone that your browser can access.

3. Security
is compatible

During your consultation we can hear you but not see you.

Live Broadcast from our Departments
What is this?
Using our Live Video Consulting service, you can visit our departments live and have us demonstrate any piece of equipment you want to see. You are perfectly free to ask questions of our representatives or give them instructions. And don't worry: we can hear, but not see you.
How can I use it?
Live Video Consulting is available for selected products. Whenever a sales representative is available, an icon which allows you to make us of the service will appear on the product page
How does that work?
You require a PC or Mac with a microphone and an up-to-date browser. It's best to use the current version of either Chrome or Firefox. Before initiating the connection, your browser will ask your permission to access your microphone.
Possible problems
We are still in the testing phase with this system, and our representatives are still finding out how to give you the best possible experience. Therefore, it may happen that we do not understand you (please speak clearly in either German or English only), that equipment is being tried out by other customers temporarily, or that there are problems with the connection. Please do not hesitate to give us feedback whenever anything like this happens, so that we may learn from this and improve our service.
Share this product
Your Contacts
Phone: +49-9546-9223-30
FAX: +49-9546-922328
Free test reports

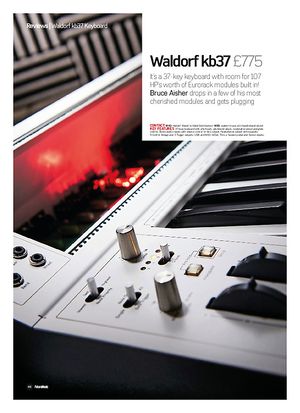

MusicRadar.com Waldorf kb37
