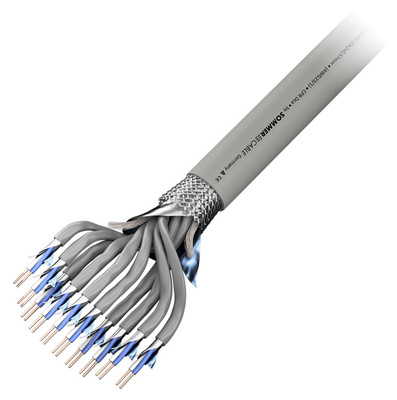

Sommer Cable Logic MODF10
Multi-Core (sold by the meter)It may be a bit stiffer ... but at least its cheap. In summary, this is exactly what is required for a modulation cable with solid wire. Due to its simple design, the LOGIC does not cost the world, but meets all the important criteria for fixed installation: It guarantees stunningly good electrical data (capacity wire / core 45 pF / m), excellent overall shielding (Cu braid + aluminum foil) a halogen-free and also flame retardant sheath according to the highest degree of protection (FRNC-IEC60332.3, test type C) and individually isolated and numbered wire pairs.
The advantage of solid wire lines is that you can achieve very good attenuation values ââand a low capacitance with very simple means, which in turn is very important for the long run lengths of these cables.
Please note that cables of this type are not suitable for mobile use.
- For installations
- 10 Pairs
- Halogen-free, flame-retardant (FRNC) modulation cable
- Solid inner conductor 1 x 0.56 mm
- In pairs with foil screen
- Also suitable for AES / EBU (110 ohms)
- Diameter 15.7mm
- Colour: Grey
