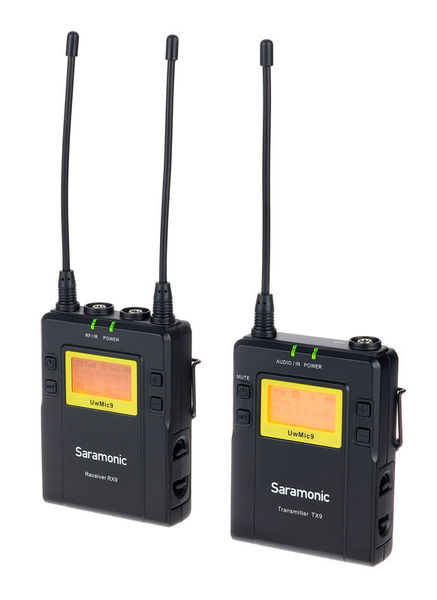

Saramonic UwMic9 (TX9+RX9)

1

Wireless Lavalier Microphone System

  • Camera-mountable built-in wireless receiver and compact UwMic9 TX9 transmitter
  • 96 Selectable channels in 2 groups
  • Headphone monitoring
  • Easy-to-read LCD display
  • Over 100 m range in open terrain
  • Optional XLR transmitter for various applications
  • Transmitter: Frequency range: 514 - 596 MHz
  • Signal to Noise Ratio: 70 dB or more
  • Voice Delay: 12 ms
  • Audio input connector: TX9: 3.5 mm mini jack
  • Input level: -60 dBV (MIC input 0 dB attenuation)
  • Distortion: 0.5% or less
  • Weight: 211 g (without batteries)
  • Operation with 2 AA batteries
  • Dimensions: 171 x 64 x 30 mm
  • Receiver: Audio Output Connector: 3.5 mm mini jack
  • Audio Output Level: -60 dBV
  • Headphone output level: 30 mW (16Ohm)
  • Receiver frequency: 514 - 596 MHz
  • Signal to Noise Ratio: 70 dB or more
  • Voice Delay: 12 ms
  • Frequency range: 40 to 18,000 Hz (+/- 3 dB)
  • Weight: 219 g (without batteries)
  • Operation with 2 AA batteries
  • Dimensions: 171 x 64 x 30 mm
Capsule Type Condenser
Microphone Color Black
Receiver Type mobile
Frequency 514 MHz – 596 MHz
Transmission system Analog
Channels Lapel Microphone 1
available since September 2020
Item number 499748
Transmitting System Analog
Selectable Frequencies 96
Pattern omnidirectional
Handheld Transmitter 0
Pocket Transmitter 1
Microphone Plug Transmitter 0
Receiver Width in mm 64 mm
Power Transmitter 2x AA
Multi Channel No
Receiver Depth in mm 30 mm
Microphone Type Lapel
Transmitter Input 3,5mm TRS
Frequency from 514 MHz
Hot Shoe Adaptor Yes
Frequency to 596 MHz
Switching Bandwidth in MHz 82 MHz
Frequency Display 1
Power Receiver 2x AA
Removable Antenna No
Output 3,5mm TRS
Charging System No
Rackkit No
Rackkit Art.-No. No
Antenna Mount Kit No
Splitter No
Show more
277 €
All prices incl. VAT
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
Free shipping Delivery until approx. Wednesday, 1.12.
1
146 Sales Rank

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

All information is without guarantee
