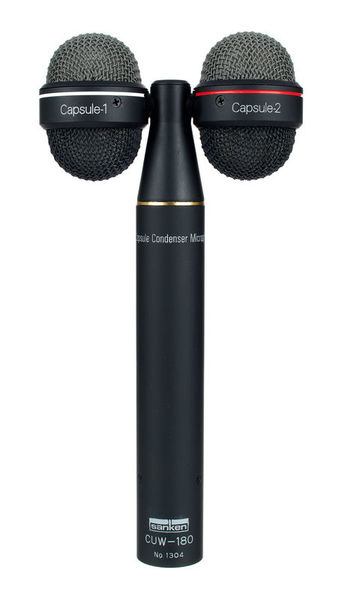

Sanken CUW-180

Sanken CUW-180 - X-Y stereo microphone; Two cardioid condenser microphones in one housing for X-Y stereo recordings. Each of the two capsules can be rotated independently in 15 ° steps. This opens up a wide range of possibilities for X-Y stereo and surround recordings of classic ensembles, guitars, wind instruments, percussion and also well suited for talk show situations. Thanks to the precise membrane layout, perfect phase coherence between the two channels is maintained - regardless of the set angle of the capsules; Characteristic: cardioid; transformer: 2x DC biased condenser; Frequency range: 20Hz to 20kHz, Sensitivity (nominal at 1kHz): 28,2mV/Pa (-31dB,0dB=1V/Pa); Equivalent noise level: 17dB-A; Max SPL: 137 dB SPL, Output impedance: 180 Ohms, power supply: phantom + 48V +/- 4V x2 channel, consumption: <1,5mA each channel, XLR 5 pin connection; H-21F microfon clip and SC-532/1.8 (XLR5F to 2 x XLR3M Y-Cable) are included.; Dimensions (L x W): 161mm x 79mm (21mm diameter at the pipe); Weight: 224g; Surface: matt black

Further Information

Battery Powered No
Directional Microphone Yes
Stereo Pair Yes
switchable lowcut No
switchable pad No
characteristic cardoid
3.290 €
All prices incl. VAT

Delivery free of charge expected between Thu, 29. October and Fri, 30. October
