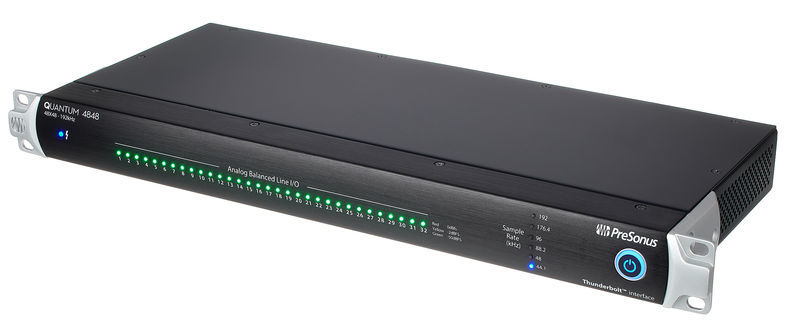

Presonus Quantum 4848

Thunderbolt 2 Audio Interface

  • 192 Sampling rate, 24 bit resolution
  • 48 Inputs and outputs
  • 32 Line level inputs and outputs via rear DB25 connector
  • 2 ADAT inputs and outputs for 16 channels of digital I / Os at base sampling rates
  • BNC Word Clock I / O
  • Up to 4 Quantum 4848 interfaces via Thunderbolt 2 can be used simultaneously for up to 192x192 simultaneous inputs and outputs
  • Signal LEDs for all 32 DB25 channels
  • Compatible with Mac OS X 10.11.6 or higher, Windows 10
  • Dimensions (W x D x H): 482.6 x 177.8 x 44.45 mm
  • Weight: 2.72 kg
  • Includes Studio One Professional Recording and Mastering DAW and Studio Magic Plug-in Suite

Further Information

Recording / Playback Channels 48x48
Number of Mic Inputs 0
Number of Line Inputs 36
Number of Instrument Inputs 0
Number of Line Outputs 36
Headphone Outs 0
Phantom Power No
Number of S/PDIF Connectors 0
Number of ADAT Connectors 2
AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI Connectors No
Word Clock 1xIn, 1xOut
Max. Samplerate 192 kHz
Max. Resolution in Bit 24 bit
Bus-Powered No
Incl. Power Supply Yes
Windows Thunderbolt driver Yes
Thunderbolt Version 2
Width in mm 482,6 mm
Depth in mm 177,8 mm
Height in mm 44,45 mm
