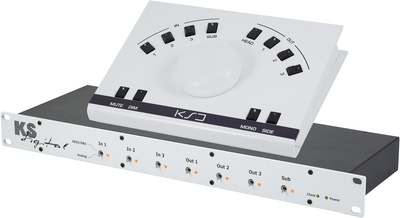

KS Digital Montreux

Monitor controller with AD / DA converterDirect access allows you to simply route three different inputs to three monitor output pairs, adjust them in level or switch to a headphone output. A switchable bass management with crossover allows the use of a subwoofer for different listening situations. Whether the sources or speakers are analog or digital, in 44.1 kHz, 48 kHz or 192 kHz, the Montreux controller processes all formats.

  • Consisting of 19" matrix unit and remote control
  • Connect to standard network cable
  • AD converter: 110 dB signal-to-noise
  • DA converter: 118 dB signal-to-noise
  • Sampling rate: 32 kHz to 192 kHz, 16 bit to 24 bits
  • Reclocking for jitter reduction
  • 3 stereo sources as well as 3 monitor pairs and subwoofer can be connected
  • Mute, dim, side and mono functions
  • Head button to mute the monitors and listen through headphones
  • Volume control over 128 bits of word width
  • 3 XLR input pairs, digital or analogue switchable
  • 3 XLR output pairs, analogue or digital switchable
  • Subwoofer output with switchable bass management
  • Headphone output with Class-A power amp
  • Made of solid steel
  • Dimensions: Matrix 19 "/ 1 U, remote: 270 x 200 x 50 mm

Further information

Number Of Monitoring Outputs (Stereo) 3
Headphone connection 1
Talkback Function No
Built-in AD / DA converter Yes
Incl. Remot control Yes
Level Meter No
Summing Function No
Surround No
Design 19" / 1U
Free shipping incl. VAT
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
